Opis

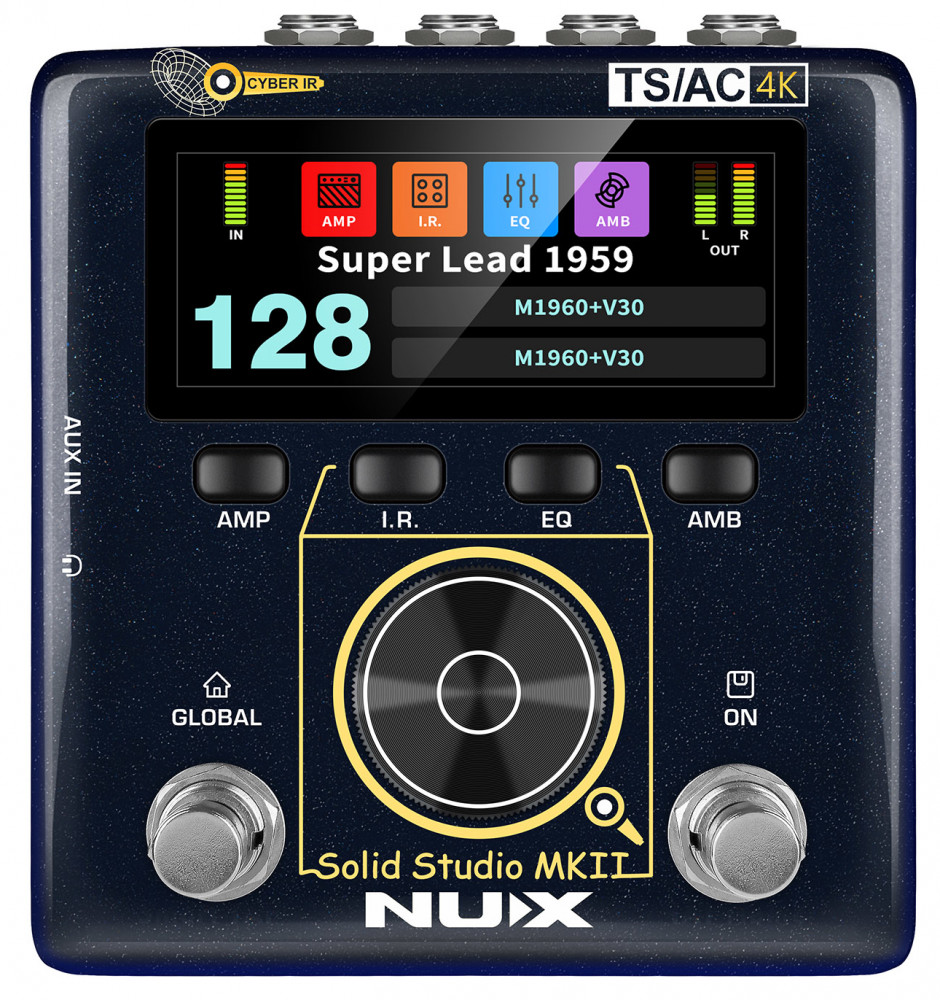

NUX NSS‑6 Solid Studio MKII je dovršen pedal za simulacijo ojačevalnika in stereo IR nalagalnik, idealen za kitarske nastavitve brez ojačevalnika, snemanje ali tiho vadbo.
TSAC‑4K “white‑box” modeliranje z ločeno simulacijo predojačevalca in ojačevalca moči – ponuja naraven, analogen občutek cevnega ojačevalca .
Stereo CYBER IR™ motor – Dvojna IR podpora z ločljivostjo 1024 vzorcev, možnost urejanja mikrofona, položaja in razdalje.
Fleksibilno urejanje signalne verige – AMP, IR, EQ in efekti okolja (ambience) – poljubno preuredljivo zaporedje.
8 ambientnih učinkov – različni reverbi in zamiki (delay).
128 uporabniških nastavitev (presetov) ter 60 IR rež za vsako stereo stran posebej .
Vgrajen USB avdio/MIDI vmesnik – deluje kot 48kHz/32-bitna zvočna kartica; omogoča posodobitve in urejanje prek Solid Studio Editor programa.
Izjemno nizka zakasnitev (latenca) – 0,85 ms v bypass načinu, 1,9 ms z vključenimi efekti.
Vzdržljiva zasnova – Ohišje iz litine, stereo izhodi ¼″, aux-in vhod, izhod za slušalke, USB‑C, MIDI, through-jack, in stikalo za ozemljitev.
Tip efekta: Amp Modeling
Vhodna upornost: 1MΩ, AUX IN Impedance: 10kΩ
Izhodna upornost: OUTPUT 1, OUTPUT 2 Impedance: 100Ω
Vtičnice: USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with GND lift, P
Napajanje: 9V DC
Frekvenca vzorčenja: 48kHz/32bit
A/D/A: Stereo CYBER IR™ Engine with dual 1024 samples resolution.
Procesiranje signala: Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged).
Zaslon: 2.86″ color LCD display (960*376) with intuitive operations
Poraba toka: < 600mA
Specifikacije: System Latency: 0.85ms (Bypass); 1.9ms (Effect On)
Specifikacije II: 128 preset slots, independent L/R 60 IR slots.
Specifikacije III: Great Dynamic Range: 110dB.
Lastnosti: Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.
Več lastnosti: World-class amp modeling algorithm with full functions.
Posebnosti: One-piece die-cast aluminum chassis.
Dolžina: 105mm
Širina: 115mm
Višina: 58mm
Teža: 450g
Dodatni opis:
The NUX NSS-6 Solid Studio MKII is a versatile and compact preamp, power amp simulator, and impulse response (IR) loader designed for modern guitarists seeking high-quality tone shaping without the need for traditional amplifiers.
TSAC-4K Modeling Algorithm : Utilizes NUX's proprietary TSAC-4K technology to emulate tube amp characteristics, providing a realistic analog feel with a dynamic range of 110dB.
Dual Amp Simulation : Offers independent preamp and power amp simulations, allowing for detailed tonal customization.
Cyber IR™ Stereo Engine : Features a dual 1024-sample resolution stereo IR engine with 60 user-defined IR slots per channel, enabling precise mic placement and cabinet simulation.
Ambience Effects : Includes 8 onboard effects such as spring reverb, plate reverb, hall reverb, room reverb, digital delay, tape echo, analog delay, and pan delay, with flexible signal block routing.
USB Audio Interface : Functions as a USB audio interface with support for dry/wet recording, re-amping, and OTG (On-The-Go) connectivity, facilitating seamless integration with recording setups.
Connectivity Options : Equipped with balanced stereo outputs, headphone output, AUX input for practice, MIDI I/O, and a Through jack for parallel power amp signal routing.
User Interface : Features a 2.86" color LCD display with intuitive controls, 128 preset slots, and a rugged die-cast aluminum chassis.
Effect Type: Amp Modeling
Input Impedance: 1MΩ, AUX IN Impedance: 10kΩ
Output Impedance: OUTPUT 1, OUTPUT 2 Impedance: 100Ω
Connectors: USB-C MIDI, THROUGH jack (parallel the Power Amp signal), stereo balanced 1/4” outs with GND lift, P
Power Supply: 9V DC
Sampling Rate: 48kHz/32bit
A/D/A: Stereo CYBER IR™ Engine with dual 1024 samples resolution.
Signal Processing: Ultra-low latency: 0.85ms (bypass), 1.9ms (efx engaged).
Display: 2.86″ color LCD display (960*376) with intuitive operations
Current Draw: < 600mA
Specifications: System Latency: 0.85ms (Bypass); 1.9ms (Effect On)
Specifications II: 128 preset slots, independent L/R 60 IR slots.
Specifications III: Great Dynamic Range: 110dB.
Features: Independent Pre & Power amp simulation with TSAC-4K white-box amp modeling algorithm.
Features II: World-class amp modeling algorithm with full functions.
Features III: One-piece die-cast aluminum chassis.
Length: 105mm
Width: 115mm
Height: 58mm
Weight: 450g
