Description

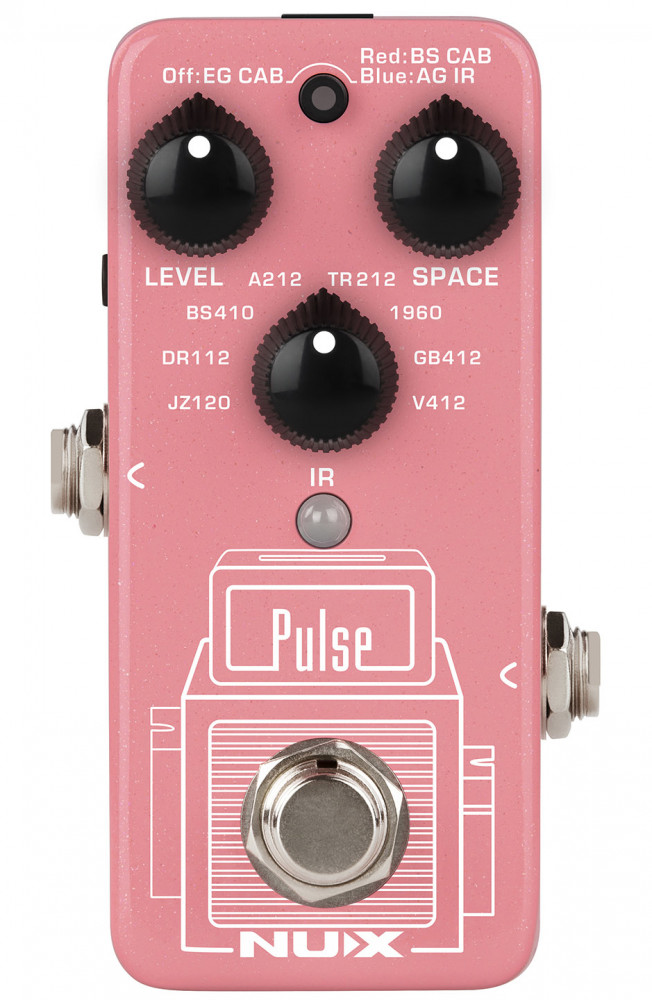

Pulse (NSS-4) je mini IR-Loader pedal s 3 različnimi načini, vključno z EG CAB, BS CAB in AG IR. Vrste lahko zamenjate tako, da tapnete stikalo.
Poleg tega lahko Pulse uporabljate kot tiho vadbeno orodje (1/8” telefonski priključek) na koncu vašega pedalboarda in celo kot vmesnik za snemanje USB v DAW na vašem računalniku.
Vhodna upornost: 1MΩ
Izhodna upornost: 10kΩ
Napajanje: 9V DC
Frekvenca vzorčenja: A/D D/A Sampling Rate: 48KHz / 24-bit
A/D/A: DSP Processing: 48KHz / 32-bit
Procesiranje signala: True-bypass or Buffer-bypass.
Poraba toka: less than 100mA
Specifikacije: WAV format supports automatically (through Pulse Editor)
Specifikacije II: 3 default IR types in the mini enclosure. (Total=24slots)
Specifikacije III: Supports Stereo.
Lastnosti: USB Audio Stream, Firmware Update.
Več lastnosti: Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
Dolžina: 94mm
Širina: 51mm
Višina: 53mm
Teža: 175 g
Dodatni opis:
Ampless? No worry, Pulse IR loader is the compact solution!
Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch.
Besides that, you can use Pulse as a silent practice tool (1/8” phone jack) in the end of your pedalboard and even as a USB recording interface onto DAW.
Input Impedance: 1MΩ
Output Impedance: 10kΩ
Power Supply: 9V DC
Sampling Rate: A/D D/A Sampling Rate: 48KHz / 24-bit
A/D/A: DSP Processing: 48KHz / 32-bit
Signal Processing: True-bypass or Buffer-bypass.
Current Draw: less than 100mA
Specifications: WAV format supports automatically (through Pulse Editor)
Specifications II: 3 default IR types in the mini enclosure. (Total=24slots)
Specifications III: Supports Stereo.
Features: USB Audio Stream, Firmware Update.
Features II: Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
Length: 94mm
Width: 51mm
Height: 53mm
Weight: 175 g
