Opis
Boss LS-2 Line Selector, Boss pedal, ki vam bo omogočil lahkoten preklop med več linijami efektov, kitarami ali ojačevalci, omogoča tudi s svojimi kontrolami za jakost signala, da uravnovestite jakost različnih jakosti le teh, možnost napajanja še ostalih pedalov iz Boss serije z njegovo pomočjo.
Tip efekta: Line Selector
Nominalni vhodni nivo: -20 dBu
Vhodna upornost: 1 M ohm
Nominalni izhodni nivo: -20 dBu
Izhodna upornost: 1 k ohms
Vtičnice: INPUT jack: 1/4-inch phone type SEND jacks A/B: 1/4-inch phone type RETURN jacks A/B: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN/OUT jack
Napajanje: 9V baterija / AC adapter
Procesiranje signala: Buffered bypass
Zaslon: Line indicator A/B (Used for indication of check battery)
Poraba toka: 30 mA
Kontrole: MODE selector switch LEVEL knobs A/B Pedal switch
Specifikacije: Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
Specifikacije II: Provides two line loops with Level control and six looping modes
Specifikacije III: Can supply power to several BOSS compact pedals when used with an AC adapto
Lastnosti: The ideal power supply and master switching unit for multiple effects setups
Več lastnosti: Recommended Load Impedance10 k ohms or greater
Pribor: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Širina: 73 mm
Višina: 59 mm
Globina: 129 mm
Teža: 430 g
Dodatni opis:

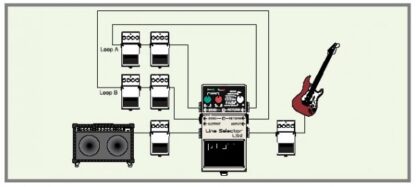

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
Effect Type: Line Selector
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohms
Connectors: INPUT jack: 1/4-inch phone type SEND jacks A/B: 1/4-inch phone type RETURN jacks A/B: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN/OUT jack
Power Supply: 9V Battery / AC Adaptor
Signal Processing: Buffered bypass
Display: Line indicator A/B (Used for indication of check battery)
Current Draw: 30 mA
Controls: MODE selector switch LEVEL knobs A/B Pedal switch
Specifications: Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
Specifications II: Provides two line loops with Level control and six looping modes
Specifications III: Can supply power to several BOSS compact pedals when used with an AC adapto
Features: The ideal power supply and master switching unit for multiple effects setups
Features II: Recommended Load Impedance10 k ohms or greater
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Width: 73 mm
Height: 59 mm
Depth: 129 mm
Weight: 430 g
